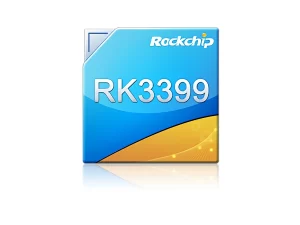

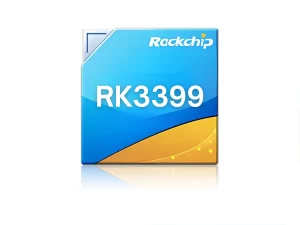

RK3399
Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU
USD Bulk Pricing
Fast Shipping & 1W+ Sold
Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, Mali-T860 GPU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- CPU：Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU
- GPU：Mali-T860 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenCL
- Multi-Media：4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps
- Display：HDMI 2.0a for 4K 60Hz with HDCP 1.4/2.2，Dual channel MIPI-DSI (4 lanes per channel)
- Interface：Support USB2.0/USB3.0/PCIE3.0/PCIE2.1/SATA3.0/QSGMII
OEM Consulting
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
RK3399
Key features
- Dual-core Cortex-A72 up to 1.8GHz
- Quad-core Cortex-A53 up to 1.4GHz
- Mali-T860 GPU
- Dual-channel DDR3/DDR3L/LPDDR3/LPDDR4
- 4K UHD H265/H264/VP9
- HDR10/HLG
- H264 encoder
- Dual MIPI CSI and ISP
- Dual USB Type-C and USB 2.0
- HDMI 2.0a with HDCP 2.2
- MIPI/eDP/RGMII/DP/PCIe
- TrustZone/TEE/DRM
DETAIL SPEC
| CPU | Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU |
| Frequency is up to 1.8GHz | |
| GPU | Mali-T860 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenCL |
| Supports AFBC (ARM Frame Buffer Compression) | |
| Memory | Dual channel DDR3-1866/DDR3L-1866/LPDDR3-1866/LPDDR4 |
| Support eMMC 5.1 with HS400, SDIO 3.0 with HS200 | |
| Multi-Media | 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps |
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | |
| 1080P video encoders for H.264 and VP8 | |
| Video post processor: de-interlace, de-noise, enhancement for edge/detail/color | |
| Display | Dual VOP: one supports 4096×2160 with AFBC supported; the other supports 2560×1600 |
| Dual channel MIPI-DSI (4 lanes per channel) | |
| eDP 1.3 (4 lanes with 10.8Gbps) to support display, with PSR | |
| HDMI 2.0a for 4K 60Hz with HDCP 1.4/2.2 | |
| DisplayPort 1.2 (4 lanes, up to 4K 60Hz) | |
| Supports Rec.2020 and conversion to Rec.709 | |
| Interface | Dual 13M ISP and dual channel MIPI CSI-2 receive interface |
| Dual USB 3.0 with type-C supported | |
| PCIe 2.1 (4 full-duplex lanes ) | |
| Embedded low power MCU for other application | |
| 8 channels I2S supports 8 channels RX or 8 channels TX | |
| Package | FCBGA828 21mmx21mm ，0.65mm pitch |
| State | MP Now |
