Product Highlights:
- Intel JASPER LAKE N5100 processor, 4-core, 4-thread 2.8GHz
- Intel® HD Graphics Gen 11 LP
- 8GB LPDDR4 (upgrade options available up to 32GB)
- 128GB eMMc (upgrade options available up to 512GB)
- Windows OS
Quote
Matching package

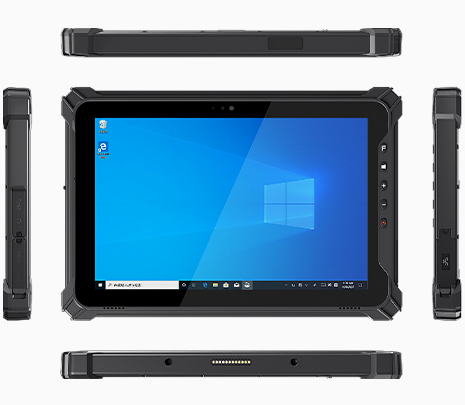

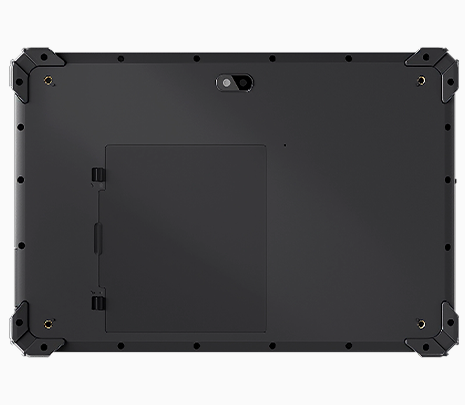

Rugged Windows Tablet
Key features
- Intel JASPER LAKE N5100 processor, 4-core, 4-thread 2.8GHz
- Intel® HD Graphics Gen 11 LP
- 8GB LPDDR4 (upgrade options available up to 32GB)
- 128GB eMMc (upgrade options available up to 512GB)
- 1200*1920 FHD, Brightness: 700cd/㎡
- Windows 11 Home/Windows 11 Pro/Windows 10 Home
- Removable Li-polymer Battery 10000mAh/3.7V
Our 10-inch Rugged Windows Tablet is powered by an Intel JASPER LAKE N5100 processor, delivering high performance for tough industrial applications. It features 32 GB (or 8/16 GB) LPDDR4, as well as eMMC 128GB (up to 512 GB) storage.
| General Information | |
|---|---|
| Product Form | 10.1 inch Rugged Tablet |
| Material | PC+10%GF |
| Dimension | 274.9×188.7×23.1 mm |
| Weight | ≈1140g |
| Product Color | Black |
| Performance | |
| CPU | Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, Maximum frequency 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 8GB DDR | ROM 128GB Emmc |
| Operating System | Windows 11 Home Optional: Windows 11 Pro Windows 10 Home |
| Display | |
| Type | FHD |
| Size | 10.1 inch 16:10 |
| Resolution | 1200×1920 |
| Brightness | 700cd/m² |
| Touch Panel | 10 points tempered glass capacitive screen G+G, hardness 7H |
| Camera | |
| Front Camera | 5.0MP |
| Rear Camera | 8.0MP, support auto focus, with flashlight function |
| Controls | |
| Buttons |
Power +1 Volume Adjustment Key (+) +1 Volume Adjustment Key (-) +1 F Key +1 (Barcode Scanning) – When there is no scanning function, it can be customized Home Key +1 |
| Audio | |
| Speaker | 8Ω/1W Speaker +2 |
| Microphone | Single MIC, Sensitivity: -42db, Output Impedance 22kΩ |
| Sensors | |
| Sensors | G_sensor |
| Battery | |
| RTC | Built in polymer lithium ion battery, with capacity of 3V/1mAh |
| Battery (Tablet) | Removable Li-polymer Battery 10000mAh/3.7V 8 hours (50% volume sounds, 50% screen brightness, 1080P HD video display by default) |
| Connectivity | |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.0 (BLE) class1 Transmitted distance: 10m |
| 4G | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 Optional: EC25-AF, 750-VA, 750-VSA |
| GPS | Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz) Cold start time is not more than 60s |
| I/O Interface | |
| I/O Interface |
USB3.0 +1 (USB A port, HOST data transmission) Type C 3.1 +1 (Charging and Data transmission, Full function Type-C) 3.5mm Standard earjack +1 HDMI 2.0a mini +1 Three in one card holder (Micro SD card, up to 512GB; Nano SIM +1) 12PIN Pogo Pin +1 (Charging interface, USB signal connection base) |
| One out of Three Interface | |
| Interface Options |
RJ45 network port +1 (10/100M adaptive) Standard DB9 serial port +1 (RS232) USB 2.0 +1 |
| Indicator Light | |
| Indicator Lights |
Blue indicator +1 (Blue light is always on when the machine is turned on, and off when the machine is turned off) R&G two-color lamp +1 (Low power red flickers, red is always on when charging, green is always on when full) |
| Adapter | |
| Adapter | PD Fast Charge Adapter + Type-C Data Cable (1m) |
| Data Collection | |
| QR Code Scanner |
Optional: Honeywell N3680 Optical resolution: 5mil Scanning speed: 50 times/s Support code: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC | |
| NFC |
Optional: NXP300 NXP NFC 13.56MHz supports 14,443A/14,443B/15,693/18,092/mifare protocol under ISO/IEC Card reading distance: 4cm |
| Accessories | |
| Standard Accessories |
Hand-strap (Standard) 18W/PE fast charging adapter (Standard) |
| Optional Accessories |
Docking Charger DC87R (Optional) Vehicle Mount VHMB7R (Optional) Removable battery (Optional) |
| Rugged Features | |
| Durability | MIL-STD-810G: 1.22m drop |
| Working temperature | -20 °C to 60 °C |
| Storage temperature | -30 °C to 70 °C |
| Electrostatic discharge | ± 8kV contact discharge, ± 15kV air discharge |
| Humidity | 95% Non-Condensing |
| Certification | |
| Certifications | IP65 CE FCC MIL-STD-810G ECM 23 ATEX-B |
| Battery Certifications | UN383 MSDS Air and Maritime Reporting IEC62133 |
