RV1108
Single Cortex-A7
USD Bulk Pricing
Fast Shipping & 1W+ Sold

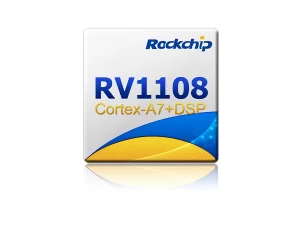

Rockchip RV1108 Single Cortex-A7 Up to 1.0GHz
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- CPU: Single Cortex-A7, up to 1.0GHz
- Memory: Support DDR3/DDR3L, 16 bits data width, Support SPI NOR FLASH ,SLC NAND, eMMC
- Display: Support Serial/Parallel RGB and MIPI-DSI interface, HDMI1.4 up to 1080P@60Hz, CVBS output up to 576i
- Security: Embedded encryption and decryption engine
- Connectivity: Support SDIO 3.0, USB2.0 OTG/HOST, I2C, UART, SPI, SFC, MIPI-CSI, CVBS in, DVP Sensor interface, 8 channels I2S interface, supports 8 channels RX or TX, Embedded Ethernet MAC, Audio Codec
OEM Consulting
Matching package
USD Bulk Pricing
Fast Shipping & 1W+ Sold
USD Bulk Pricing
Fast Shipping & 1W+ Sold
RV1108
Key features
- Single-core Cortex-A7 up to 1.0GHz
- High-performance DSP
- DDR3/DDR3L
- 1440P H264 video decoder
- HD display
- 1440P H264 encoder
- 8M ISP with WDR
- USB 2.0
- HDMI 1.4 with HDCP 1.3
- CVBS in&out/MIPI/Audio DAC
DETAIL SPEC
| Process | 28nm |
| CPU | Single Cortex-A7 , up to 1.0GHz |
| Video/Image Digital Processor | High performance CEVA XM4 DSP |
| Embedded 8M ISP with WDR | |
| High performance dedicated 2D processor | |
| Support De-interlace | |
| Memory | Support DDR3/DDR3L, 16 bits data width |
| Support SPI NOR FLASH ,SLC NAND，eMMC | |
| Multi-Media | 1440P@30fps H.264 Video decoder |
| 1440P@30fps H.264 Video encoder | |
| Display | Support Serial/Parallel RGB and MIPI-DSI interface |
| HDMI1.4 up to 1080P@60Hz | |
| CVBS output up to 576i | |
| Security | Embedded encryption and decryption engine |
| Connectivity | MIPI-CSI ，CVBS in ,DVP Sensor interface |
| Support SDIO 3.0, USB2.0 OTG/HOST，I2C，UART，SPI, SFC | |
| 8 channels I2S interface, supports 8 channels RX or TX | |
| Embedded Ethernet MAC ,Audio Codec | |
| Package | BGA356 14X14, 0.65mm pitch |
| RV1108A without 128MB DDR3 | |
| RV1108G with 128MB DDR3 | |
| State | MP Now |
