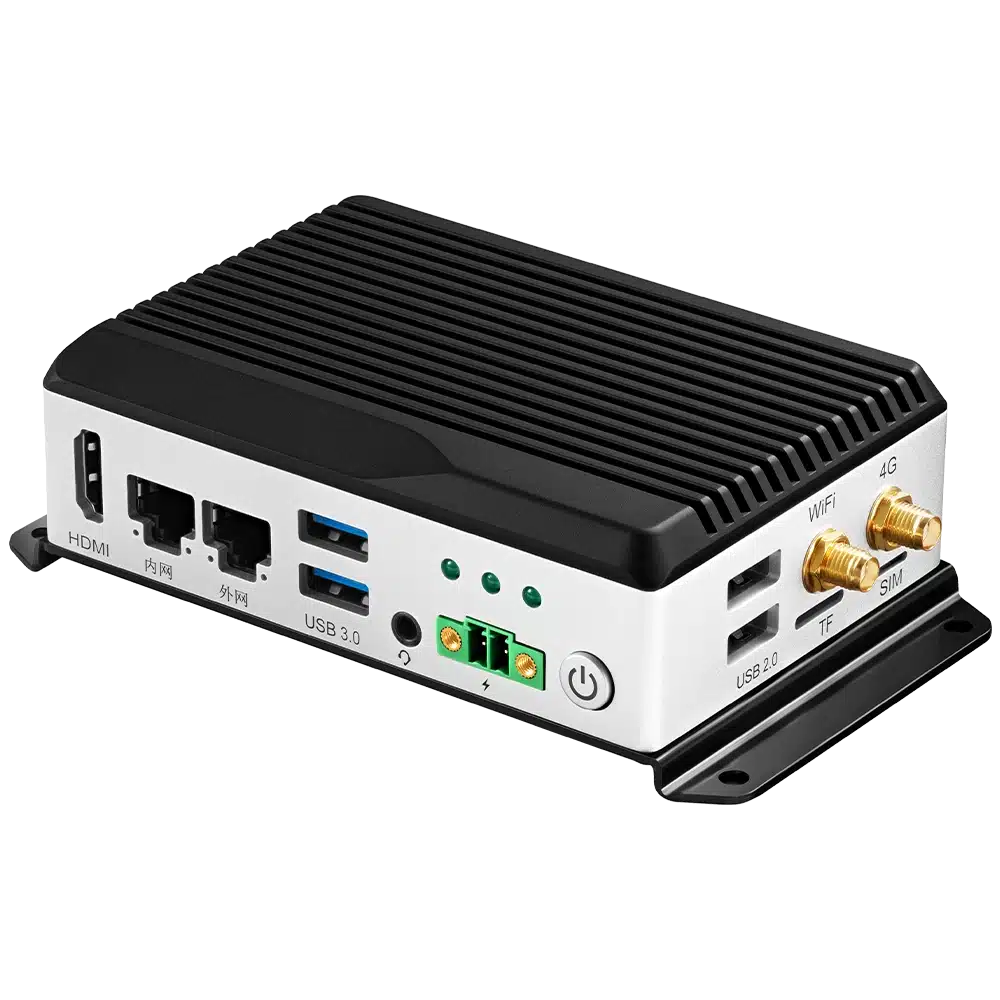

Kiwi Pi M5
RK3588 AI Edge Computer with 6 TOPS NPU, 8K Video Processing and Dual Gigabit Ethernet
USD $174.00
Fast shipping & 1W+ Sold
Rockchip RK3588 Octa-Core CPU (4× Cortex-A76 + 4× Cortex-A55) ARM Mali-G610 MC4 GPU & 6 TOPS NPU
∞
Sold
7x24 Hours
Technical Support
1 V 1
Service
Product Highlights:
- Rockchip RK3588 octa-core processor
- ARM Mali-G610 MC4 GPU
- 6 TOPS AI computing Performance
- Supporting 8K video decoding/encoding
- Dual Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.0, USB 3.0, and HDMI 2.1
- Supports Linux/Android/Debian
- 16GB LPDDR4X, up to 512GB eMMC storage
- Designed for AI Edge computing
Quote
Matching package
USD $169.00 – $204.90
Fast shipping & 1W+ Sold
USD $139.00 – $174.90
Fast shipping & 1W+ Sold
AI Edge Computing Box Kiwi Box 5
Key features
- Rockchip RK3588 octa-core processor with 4× Cortex-A76 + 4× Cortex-A55 architecture
- Advanced 8nm process technology for high performance and power efficiency
- ARM Mali-G610 MC4 GPU with OpenGL ES, OpenCL, and Vulkan support
- Triple-core NPU delivering up to 6 TOPS AI computing performance
- 8K video decoding and encoding capabilities
- Up to 4/8/16GB LPDDR4X memory and up to 512GB eMMC storage options
- Supports Linux 5.10/6.10, Android 12, Ubuntu 22.04, and Debian 11

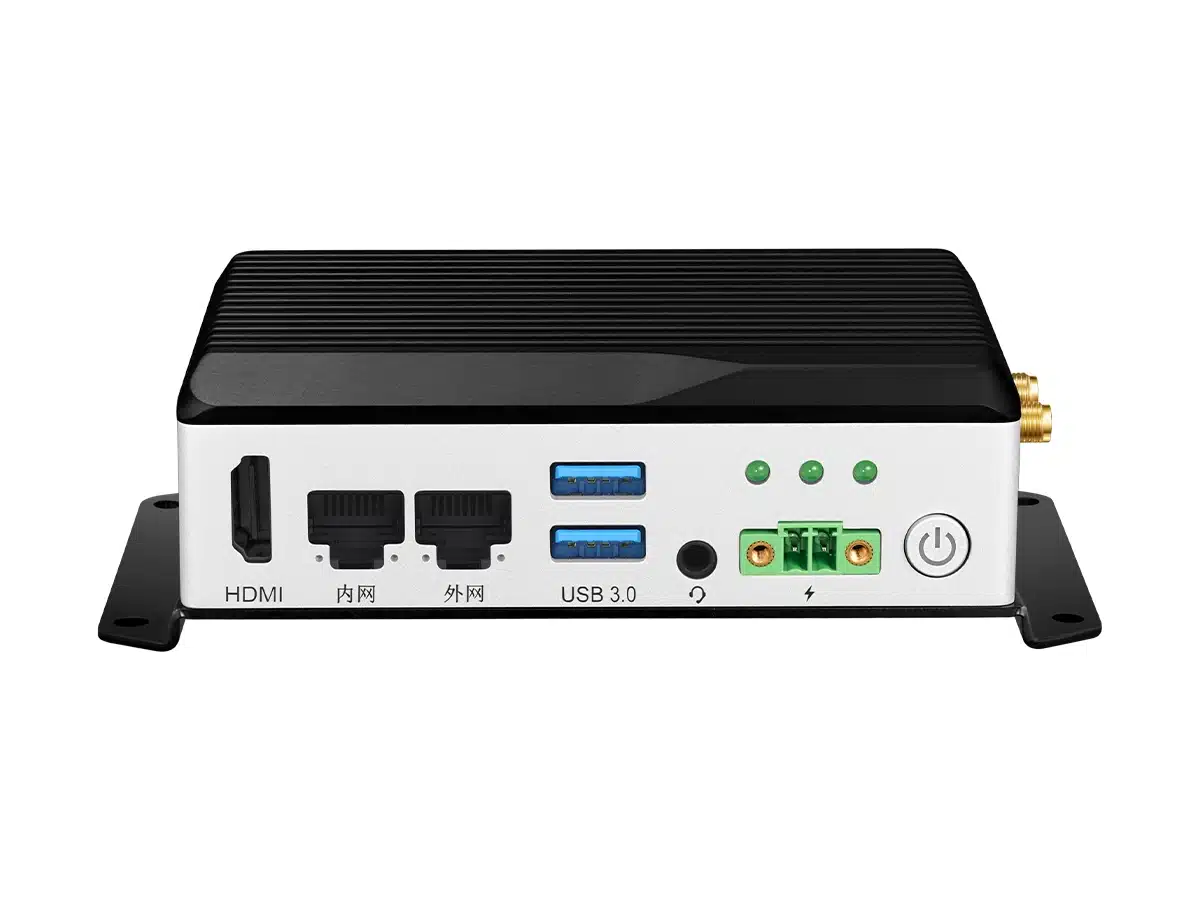

The Kiwi Box 5 (Kiwi Pi M5) is a powerful AI edge computing platform built around Rockchip’s flagship RK3588 processor. Designed for industrial automation, intelligent edge AI, multimedia processing, and embedded applications, it combines an octa-core CPU architecture with a high-performance Mali-G610 GPU and a dedicated 6 TOPS NPU.
Supporting advanced AI frameworks and high-resolution multimedia processing, the Kiwi Box 5 delivers exceptional performance for computer vision, machine learning, smart surveillance, robotics, and edge inference workloads. With dual Gigabit Ethernet ports, Wi-Fi 6 connectivity, HDMI 2.1 output, and extensive storage expansion options, it provides a flexible and reliable solution for demanding commercial and industrial deployments.
DETAIL SPEC
| CPU | Rockchip RK3588 Quad-core ARM 64-bit CPU 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz 8nm process@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High-performance 2D image acceleration |
| NPU | Triple-core NPU, 6 TOPS Performance Supports int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 Support 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding at the same time |
| DDR | LPDDR4X 16GB (option: 4/8) 2133MHz, 64-bit |
| eMMC5.1 | 128GB (option: 64/256/512GB) MicroSD (TF) Card Slot |
| USB Ports | 2*USB 3.0 Host 2*USB 2.0 Host |
| HDMI | HDMI2.1 (8K@60fps or 4K@120fps |
| Wireless | WiFi-6 2.4/5 IEEE802.11 a/b/g/n/ac/ax Bluetooth 5.0 BLE 2.4Ghz and 5Ghz band channels, 1T1R |
| Ethernet | 2*1000Mbps RJ45 Ethernet |
| Audio | 1*3.5mm headphone jack (supports stereo output + MIC input) |
| RTC | Supports rechargeable button batteries |
| Button | Capacitive touch power button with red/green LEDs |
| Power Supply | DC-12V(Phoenix terminal with screw spacing 3.81mm) |
| OS | Linux 5.10 (option: Linux6.10) Android12/Ubuntu22.04/Debian11 |
| Dimensions | 136 x75 x 38mm |
| Weight | 386.5g |
| Power Consumption | Idle: ~1.35W (12V/110mA) Typical: ~4.8W (12V/400mA) Maximum: ~15W (12V/1250mA) |
| External Interfaces | 2×USB3.0 2×USB2.0 1×HDMI2.1 2×RJ45 (Gigabit Ethernet) 1×3.5mm headphone jack 3.81mm pitch fan terminal power interface 3×LED status indicators Illuminated power button |
| Environmental Conditions | Operating Temperature: 0℃ ~ 80℃ Storage Temperature: -20℃ ~ 80℃ Humidity: 10% ~ 90% (non-condensing) |
